Turret Punch Press Services

Turret Punch is a manufacturing process in which sheet material is loaded into a CNC (Computer Numerical Control) machine which indexes the material and selects the intended tool out of the rotary tool holding device (turret) totally by computer control for piercing, blanking and forming products as programmed. This machine is also capable of stamping part identification on metal parts when marking or engraving is required.

Loyal Manufacturing Corporation's Punch Press Service has provided its customers with precision metal products since 1975. Utilizing Amada turret presses, Loyal Manufacturing can provide high volume, repeatable products with little or no custom tooling. Our dedicated and experienced employees strive for "Total Customer Satisfaction" and "On Time Shipping" in every part produced. Loyal Manufacturing has a wide range of standard tooling complimented by many special tools including louvers, assembly tabs, electrical knockouts, embossing, etc. Over the years many types of material have been punched such as carbon (mild) steel, vinyl clad steel, coated carbon steel, aluminum, copper, brass, stainless steel, & plastic (including printed circuit boards). Refer to the "Materials Processed" section of this page for specific materials/grades.

Following completion of all customer parts, each process is analyzed to insure maximum efficiency in our manufacturing methods. Our CNC programs can be easily modified as revisions become necessary and all data is backed up and securely stored on a daily basis. Whether we are supporting the development of a unique prototype, small runs or large runs, we have the experience to suit most any need. Our goal is to find the most efficient solutions possible to maximize the value of the products supplied to our customers.

Refer to the machine specifications listed below, to see our capabilities and how we can support your fabrication needs.

Use the "Request Information" selection button to contact us, and attach your design documentation for our Engineering Department to review. Then work with our Engineering Department to confirm your design requirements and receive your quote.

Request for Information

Turret Punch Press Capabilities

Turret Punch Machines

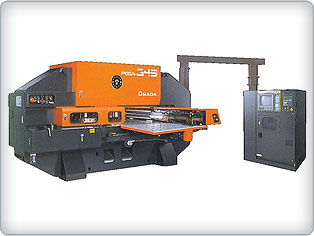

Amada Pega 345 (2):
"30 Ton Machine" with a 58 Tool Turret Head Tool Holder
Bed Size Capacity: 39.38" x 50"
Bed Size Capacity (with clamps repositioned): 39.38" x 96"
Material Thickness Ranges:
Carbon Steel (Hot & Cold Rolled): up to 10 gauge
Galvanized Steel: up to 10 gauge
Galvannealed Steel: up to 10 gauge
Aluminum: up to .25"
Stainless Steel: up to 12 gauge
Copper: up to .125"
Brass: up to .063
Plastic up to .25"
Materials Processed
Carbon (mild) steel: (cold rolled, hot rolled, hot rolled pickled and oiled, draw quality) sheet
Galvanized and galvannealed coated carbon steel sheet
Aluminum 3003H14, 5052H32, 6061T6, 6063T5, in sheet & tread plate
Aluminized sheet
Stainless steel 301, 304, 310, & 316 w/ #4 & 2B finishes sheet
Brass alloy 260 and 110 copper sheet
Plastic, lexan, & delrin sheet
Vinyl clad steel
Industries Served
  • Climate Control Enclosures
  • Commercial Furniture Brackets & Shelves
  • Commercial TV custom vesa brackets LCD / LED / Plasma
  • Custom Carrying Cases
  • Custom OEM Circuit Board Enclosures
  • Education Audio/Video Equipment
  • Electric Motor Bases
  • Electrical Enclosures & Panels
  • Food Service Industry Brackets, Enclosures, etc
  • Furnace & Air Conditioning Brackets, Panels, etc
  • Health & Beauty - tanning bed components & brackets
  • Industrial Lighting brackets HID / LED
  • Industrial Plumbing Valve Enclosures
  • Medical Devices
  • Military Brackets & Enclosures
  • Pet Supply Brackets & Enclosures
  • POP Cash Storage Cabinets
  • Printed Circuit Boards
  • Public Utility Safety Testing Devices
  • Safe & Vault Brackets
  • Security Equipment & Devices
  • Specialty Fasteners/Brackets
  • Transportation Safety
