Self-Clinching Fasteners

Self-clinching fastener insertion is a process of inserting engineered fasteners with compression force into a metal surface. These fasteners are engineered with knurls or expansive bases that "self-clinch" when mated with the appropriate size opening and can dramatically reduce the costs of tapping or masking threads for parts that require surface coating.

Loyal Manufacturing Corporation's Fastener Insertion Service has provided its customers with precision metal products since 1975. Utilizing two self-clinching fastener insertion machines (commonly referred to as Pem Fasteners), Loyal Manufacturing can provide high volume, repeatable products with little or no custom tooling. Fasteners can be inserted prior to paint (masking available upon request) or after the paint process. Our dedicated and experienced employees strive for "Total Customer Satisfaction" and "On Time Shipping" in every part produced. Loyal Manufacturing has a wide range of standard tooling complimented by auto-feed for 6-32, 8-32, 10-32 nuts and 156-8 snap top stand offs "Other auto-feed tooling available as needed".

Loyal has significant experience with zinc plated steel, aluminum, stainless steel & hardened stainless steel nuts, stand offs, blind stand offs, and studs. Over the years fasteners have been inserted into many types of material with significant experience in carbon (mild) steel, coated carbon steel, aluminum, copper, brass & stainless steel. Refer to the "Materials Processed" section of this page for specific materials/grades.

Following completion of all customer parts, each process is analyzed to insure maximum efficiency in our manufacturing methods. Whether we are supporting the development of a unique prototype, small runs or large runs, we have the experience to suit most any need. Our goal is to find the most efficient solutions possible to maximize the value of the products supplied to our customers.

Refer to the machine specifications listed below, to see our capabilities and how we can support your fabrication needs.

Use the "Request Information" button to contact us, and attach your design documentation along with your contact information for our Engineering Department to review. Then work with our Engineering Department to confirm your design and receive your quote.

Request for Information

Self-Clinching Fasteners Capabilities

PEM Insertion Machines
2.5-ton Haeger HP2.5-A (manual set machine)
Throat Depth: 12 inches
Ram Stroke: 6 inches
Operating Pressure: 200 to 5,000 pounds

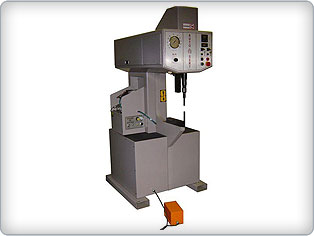

7.5-ton Auto-Sert AS-7 (automatic feed machine)
Throat Depth: 20 inches
Ram Stroke: 6 inches
Operating Pressure: 300 to 15,000 pounds
Auto feed tooling available: 6-32, 8-32, 10-32 nuts and 156-8 snap top stand offs
Other auto feed tooling is available as required
Materials Processed
Carbon (mild) steels: (cold rolled, hot rolled, hot rolled pickled and oiled, draw quality) A36, C1018, 12L14, bar, angle & sheet
Galvanized and galvannealed coated carbon steel in sheet
Aluminum 3003H14, 5052H32, 6061T6, 6063T5, in sheet, tread plate, bar, extrusion, & angle
Aluminized sheet.
Stainless steel 301, 304, 310, & 316 w/ #4 & 2B finishes in sheet & bar
Brass alloy 260 and 110 copper in sheet & bar
Vinyl clad steel
Industries Served
  • Climate Control Enclosures
  • Commercial Furniture Brackets & Shelves
  • Commercial TV custom vesa brackets LCD / LED / Plasma
  • Custom Carrying Cases
  • Custom OEM Circuit Board Enclosures
  • Education Audio/Video Equipment
  • Electric Motor Bases
  • Electrical Enclosures & Panels
  • Food Service Industry Brackets, Enclosures, etc
  • Furnace & Air Conditioning Brackets, Panels, etc
  • Health & Beauty - tanning bed components & brackets
  • Industrial Lighting brackets HID / LED
  • Industrial Plumbing Valve Enclosures
  • Medical Devices
  • Military Brackets & Enclosures
  • Pet Supply Brackets & Enclosures
  • POP Cash Storage Cabinets
  • Printed Circuit Boards
  • Public Utility Safety Testing Devices
  • Safe & Vault Brackets
  • Security Equipment & Devices
  • Specialty Fasteners/Brackets
  • Transportation Safety
