Shearing Services

Shearing is a type of cutting operation in which sheet material is cut by means of a moving blade and fixed edge. Starting with standard size sheets, material is cut to yield sensitive panel sizes, which are generally used at subsequent workstations.

Loyal Manufacturing Corporation's shearing service has provided its customers with tight tolerance, precision metal products since 1975. Utilizing a CNC controlled Amada M2560 power squaring shear, Loyal Manufacturing can provide high volume, repeatable products with no custom tooling required. Our dedicated and experienced employees strive for "Total Customer Satisfaction" and "On Time Shipping" in every part produced. Over the years many types of material have been sheared such as carbon (mild) steel, vinyl clad steel, coated carbon steel, aluminum, copper, brass, stainless steel, & plastic (including printed circuit boards). Refer to the "Materials Processed" section of this page for specific materials/grades.

Refer to the machine specifications listed below, to see our capabilities and how we can support your fabrication needs.

Use the "Request Information" button to contact us, and attach your design documentation for our Engineering Department to review. Then work with our Engineering Department to confirm your design requirements and receive your quote.

Request for Information

Shearing Capabilities

Shearing Machines

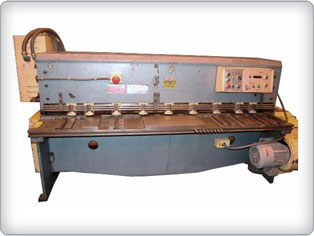

Amada M2560 Shear:
Sheet Thickness Ranges: 0.005-0.25 inches
Carbon Steel (Hot & Cold Rolled) up to 10 gauge
Galvanized Steel up to 10 gauge
Galvannealed Steel up to 10 gauge
Stainless Steel up to 11 gauge
Aluminum up to .250"
Copper up to .125"
Brass up to .125"
Tolerance: ± .01" to .03" material type/thickness sensitive
Sheet Size (Maximum): 8 Feet Wide x 12 Feet Long
Materials Processed
Carbon (mild) steel: (cold rolled, hot rolled, hot rolled pickled and oiled, draw quality) sheet
Galvanized and galvannealed coated carbon steel sheet
Aluminum 3003H14, 5052H32, 6061T6, 6063T5, in sheet & tread plate
Aluminized sheet
Stainless steel 301, 304, 310, & 316 w/ #4 & 2B finishes sheet
Brass alloy 260 and 110 copper sheet
Plastic, lexan, & delrin sheet
Vinyl clad steel
Industries Served
  • Climate Control Enclosures
  • Commercial Furniture Brackets & Shelves
  • Commercial TV custom vesa brackets LCD / LED / Plasma
  • Custom Carrying Cases
  • Custom OEM Circuit Board Enclosures
  • Education Audio/Video Equipment
  • Electric Motor Bases
  • Electrical Enclosures & Panels
  • Food Service Industry Brackets, Enclosures, etc
  • Furnace & Air Conditioning Brackets, Panels, etc
  • Health & Beauty - tanning bed components & brackets
  • Industrial Lighting brackets HID / LED
  • Industrial Plumbing Valve Enclosures
  • Medical Devices
  • Military Brackets & Enclosures
  • Pet Supply Brackets & Enclosures
  • POP Cash Storage Cabinets
  • Printed Circuit Boards
  • Public Utility Safety Testing Devices
  • Safe & Vault Brackets
  • Security Equipment & Devices
  • Specialty Fasteners/Brackets
  • Transportation Safety
